[Spring] 게시판 만들기 총정리 (게시글 등록·확인·삭제·수정)

728x90

Spring Legacy · STS · OracleDB · SQLDeveloper

저번에 정리했던 게시판 만들기 총정리 겸 복습 포스팅입니다.

자세한 설명은 아래 링크참고

1번:https://rebornbb.tistory.com/entry/Spring-Spring-DTO-DAO-%EC%83%9D%EC%84%B1%ED%95%98%EA%B8%B0

[Spring] DTO,DAO,mapper생성과 DB연결 설정하기

Spring Legacy · SpringEclips · OracleDB · SQLDeveloper · JSTL 0. 새로운프로젝트를만든다 1. pom.xml에서 필요한 의존객체 를 추가한다 (dependency, properties 확인) 2. DB에 human 테이블을 만든다...

rebornbb.tistory.com

2번:https://rebornbb.tistory.com/entry/Spring-%EB%A6%AC%EC%8A%A4%ED%8A%B8%C2%B7%EC%83%81%EC%84%B8-%EC%B6%9C%EB%A0%A5-%EB%8D%B0%EC%9D%B4%ED%84%B0-%EC%9E%85%EB%A0%A5%C2%B7%EB%93%B1%EB%A1%9D-%EB%A7%8C%EB%93%A4%EA%B8%B0

[Spring] 글 목록·상세 출력 / 입력·등록·삭제·수정 만들기

Spring Legacy · SpringEclips · OracleDB · SQLDeveloper · JSTL 이전 포스팅과 설명이 이어집니다. https://rebornbb.tistory.com/entry/Spring-Spring-DTO-DAO-%EC%83%9D%EC%84%B1%ED%95%98%EA%B8%B0 저..

rebornbb.tistory.com

게시판 게시글등록,삭제,수정,확인 총 흐름 정리

pom.xml 데이터베이스 설정 (DB에 필요 dependency 추가, 자바버전 properties 확인)
DB담을 DTO 생성
DB작업할 DAO 생성
DAO에서 사용할 mapper (Mapper.xml과 mybatis-config.xml) 생성
root-context.xml 에 실제 DB에 연결하는 작업 + service package 와 Namespace context 설정
Service (비즈니스로직) 실제 실행되는 프로그램을 만든다 DAO 호출
최종적으로 사용자가 요청하면 Controller에서 서비스를 호출하여 view로 넘겨준다
Views에 jsp를 작성해 화면을 출력한다

1.pom.xml 데이터베이스 설정 (DB에 필요 dependency 추가, 자바버전 properties 확인)

	<!-- 자바버전확인 -->
	<properties>
		<java-version>1.8</java-version>
		<org.springframework-version>4.3.5.RELEASE</org.springframework-version>
		<org.aspectj-version>1.6.10</org.aspectj-version>
		<org.slf4j-version>1.6.6</org.slf4j-version>
	</properties>

	<dependencies>

	<!-- DB설정 -->
	<dependency>
	    <groupId>com.oracle.database.jdbc</groupId>
	    <artifactId>ojdbc8</artifactId>
	    <version>18.3.0.0</version>
	</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-jdbc</artifactId>
			<version>4.3.5.RELEASE</version>
		</dependency>
		<dependency>
			<groupId>org.mybatis</groupId>
			<artifactId>mybatis</artifactId>
			<version>3.4.1</version>
		</dependency>

		<dependency>
			<groupId>org.mybatis</groupId>
			<artifactId>mybatis-spring</artifactId>
			<version>1.3.0</version>
		</dependency>

2.DB담을 DTO 생성

package com.human.dto;

import java.util.Date;

public class BoardDto {
	private int bno;
	private String title;
	private String content;
	private String writer;
	private Date regdate;
	private int viewcnt;
	public int getBno() {
		return bno;
	}
	public void setBno(int bno) {
		this.bno = bno;
	}
	public String getTitle() {
		return title;
	}
	public void setTitle(String title) {
		this.title = title;
	}
	public String getContent() {
		return content;
	}
	public void setContent(String content) {
		this.content = content;
	}
	public String getWriter() {
		return writer;
	}
	public void setWriter(String writer) {
		this.writer = writer;
	}
	public Date getRegdate() {
		return regdate;
	}
	public void setRegdate(Date regdate) {
		this.regdate = regdate;
	}
	public int getViewcnt() {
		return viewcnt;
	}
	public void setViewcnt(int viewcnt) {
		this.viewcnt = viewcnt;
	}
	@Override
	public String toString() {
		return "BoardDto [bno=" + bno + ", title=" + title + ", content=" + content + ", writer=" + writer
				+ ", regdate=" + regdate + ", viewcnt=" + viewcnt + "]";
	}



}

3.DB작업할 DAO 생성

package com.human.dao;

import java.util.List;

import com.human.dto.BoardDto;

public interface IBoardDao {
	public void create(BoardDto dto) throws Exception;
	public BoardDto read(int bno) throws Exception;
	public void delete(int bno) throws Exception;
	public void update(BoardDto dto) throws Exception;
	public List<BoardDto> listAll() throws Exception;
}

4.DAO에서 사용할 mapper (Mapper.xml과 mybatis-config.xml) 생성

Mapper.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper
PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
"http://mybatis.org/dtd/mybatis-3-mapper.dtd">

<mapper namespace="com.human.dao.IBoardDao">
<insert id="create">
insert into tbl_board(bno,title,content,writer)
values(seq_board.nextval,#{title},#{content},#{writer})
</insert>
<select id="read" resultType="BoardDto">
select * from tbl_board where bno=#{bno}
</select>
<delete id="delete">
delete from tbl_board where bno=#{bno}
</delete>
<update id="update">
update tbl_board set title=#{title},content=#{content} where bno=#{bno}
</update>
<select id="listAll" resultType="com.human.dto.BoardDto">
select * from tbl_board order by bno desc,regdate desc
</select>
</mapper>

mybatis-config.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE configuration
  PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
  "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
	<typeAliases>
		<package name="com.human.dto"/>
	</typeAliases>
</configuration>

5.root-context.xml 에 실제 DB에 연결하는 작업 + service package 와 Namespace context 설정

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:context="http://www.springframework.org/schema/context"
	xsi:schemaLocation="http://www.springframework.org/schema/beans https://www.springframework.org/schema/beans/spring-beans.xsd
		http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.3.xsd">
	<!-- Namespace-context설정 -->

	<!-- Root Context: defines shared resources visible to all other web components -->
		<bean
		class="org.springframework.jdbc.datasource.DriverManagerDataSource"
	 	name="dataSource">
	  	<property value="oracle.jdbc.driver.OracleDriver" name="driverClassName"/>
	  	<property value="jdbc:oracle:thin:@localhost:1521:xe" name="url"/>
	  	<property value="c##human" name="username"/>
	  	<property value="human" name="password"/>
	 	</bean>

		<bean id="sqlSessionFactory"
      class="org.mybatis.spring.SqlSessionFactoryBean">

	 	<property name="dataSource" ref="dataSource" />
		<property name="configLocation"
					value="classpath:/mybatis-config.xml"></property>
		<property name="mapperLocations"
		      value="classpath:mappers/**/*Mapper.xml"></property>
		</bean>

		<bean id="sqlSession" class="org.mybatis.spring.SqlSessionTemplate"
		   destroy-method="clearCache">
		  <constructor-arg name="sqlSessionFactory"
		    ref="sqlSessionFactory"></constructor-arg>
		</bean>

		<!-- Service설정 -->
		<context:component-scan base-package="com.human.service"></context:component-scan>

</beans>

6.Service (비즈니스로직) 실제 실행되는 프로그램을 만든다 DAO 호출

package com.human.service;

import java.util.List;

import org.apache.ibatis.session.SqlSession;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import com.human.dao.IBoardDao;
import com.human.dto.BoardDto;
@Service
public class BoardServiceImpl implements IBoardService {
	@Autowired
	private SqlSession sqlSession;
	@Override
	public void create(BoardDto dto) throws Exception {
		//추가 비지니스로직을 기술하기 위해서 service 인터페이스를 추가하였다.
		IBoardDao dao=sqlSession.getMapper(IBoardDao.class);
		dao.create(dto);
	}
	@Override
	public BoardDto read(int bno) throws Exception {
		// TODO Auto-generated method stub
		IBoardDao dao=sqlSession.getMapper(IBoardDao.class);
		BoardDto r=dao.read(bno);
		return r;
	}

	@Override
	public void delete(int bno) throws Exception {
		// TODO Auto-generated method stub
		IBoardDao dao=sqlSession.getMapper(IBoardDao.class);
		dao.delete(bno);
	}

	@Override
	public void update(BoardDto dto) throws Exception {
		// TODO Auto-generated method stub
		IBoardDao dao=sqlSession.getMapper(IBoardDao.class);
		dao.update(dto);
	}

	@Override
	public List<BoardDto> listAll() throws Exception {
		IBoardDao dao=sqlSession.getMapper(IBoardDao.class);
		List<BoardDto> dtos=dao.listAll();
		return dtos;
	}

}

package com.human.service;

import java.util.List;

import com.human.dto.BoardDto;

public interface IBoardService {
	public void create(BoardDto dto) throws Exception;
	public BoardDto read(int bno) throws Exception;
	public void delete(int bno) throws Exception;
	public void update(BoardDto dto) throws Exception;
	public List<BoardDto> listAll() throws Exception;

}

7.최종적으로 사용자가 요청하면 Controller에서 서비스를 호출하여 view로 넘겨준다

package com.human.ex;

import java.util.Locale;

import javax.inject.Inject;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.servlet.mvc.support.RedirectAttributes;

import com.human.dto.BoardDto;
import com.human.service.IBoardService;

@Controller
public class BoardController {

	@Inject
	private IBoardService service;
	//@Inject = @Autowired 와 기능동일

	@RequestMapping(value = "/board/remove", method = RequestMethod.GET)
	public String remove(@RequestParam("bno")int bno
			,RedirectAttributes rttr) throws Exception {
		service.delete(bno);
		rttr.addFlashAttribute("msg","success");
		return "redirect:/board/listAll";
	}
	@RequestMapping(value = "/board/modify", method = RequestMethod.POST)
	public String modify(BoardDto boardDto,Model model
			,RedirectAttributes rttr) throws Exception {
		service.update(boardDto);
		rttr.addFlashAttribute("msg","success");
		return "redirect:/board/listAll";
	}
	@RequestMapping(value = "/board/modify", method = RequestMethod.GET)
	public void modify(@RequestParam("bno")int bno,Model model) throws Exception {
		model.addAttribute(service.read(bno));
		//model.addAttribute("boardDto",service.read(bno));
	}
	@RequestMapping(value = "/board/read", method = RequestMethod.GET)
	public void read(@RequestParam("bno")int bno,Model model) throws Exception {
		model.addAttribute(service.read(bno));
		//model.addAttribute("boardDto",service.read(bno));
	}
	@RequestMapping(value = "/board/register", method = RequestMethod.GET)
	public void register(Model model) throws Exception {
	}
	@RequestMapping(value = "/board/register", method = RequestMethod.POST)
	public String register(BoardDto boardDto,Model model,RedirectAttributes rttr) throws Exception {
		service.create(boardDto);
		rttr.addFlashAttribute("msg","success");
		return "redirect:/board/listAll";
	}
	@RequestMapping(value = "/board/listAll", method = RequestMethod.GET)
	public void listAll(Model model) throws Exception {
		//DB에 있는 모든데이터를 화면에 보여주기

		//DB에 있는 모든데이터를 읽어다주는 service를 실해서
		//모델의 list 에 담는다.
		model.addAttribute("list",service.listAll());
	}
}

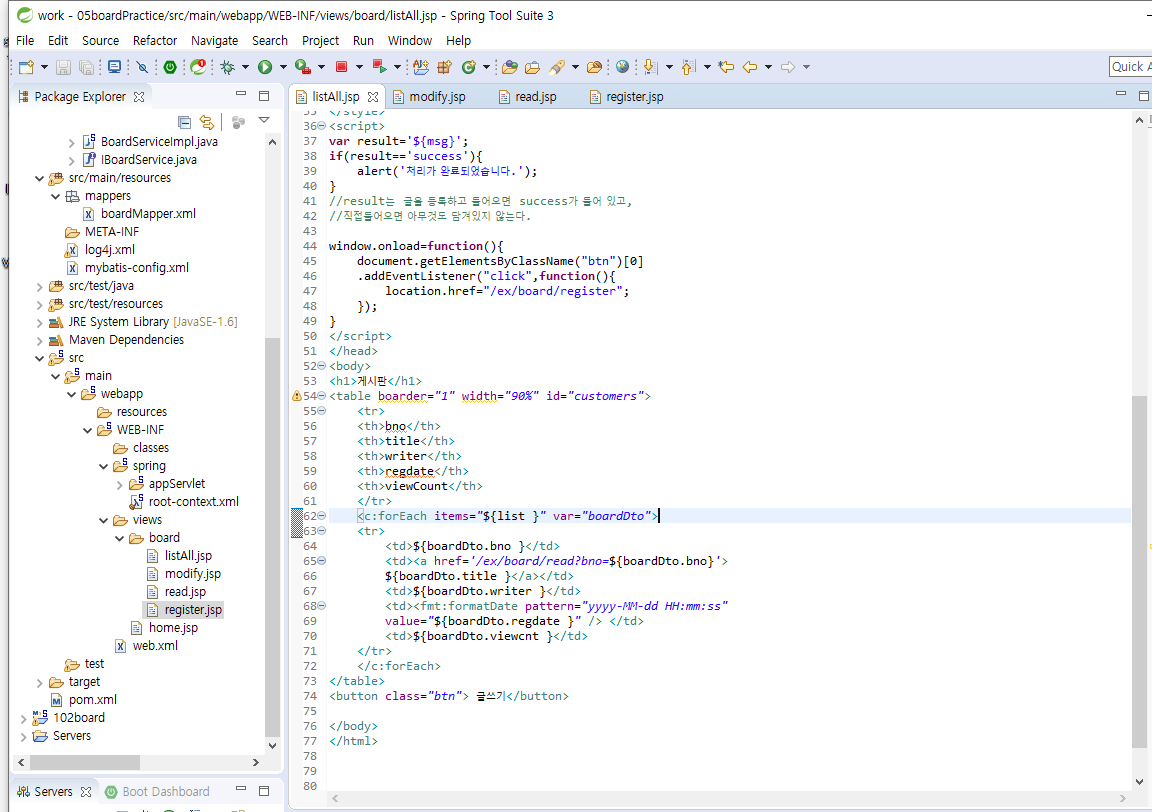

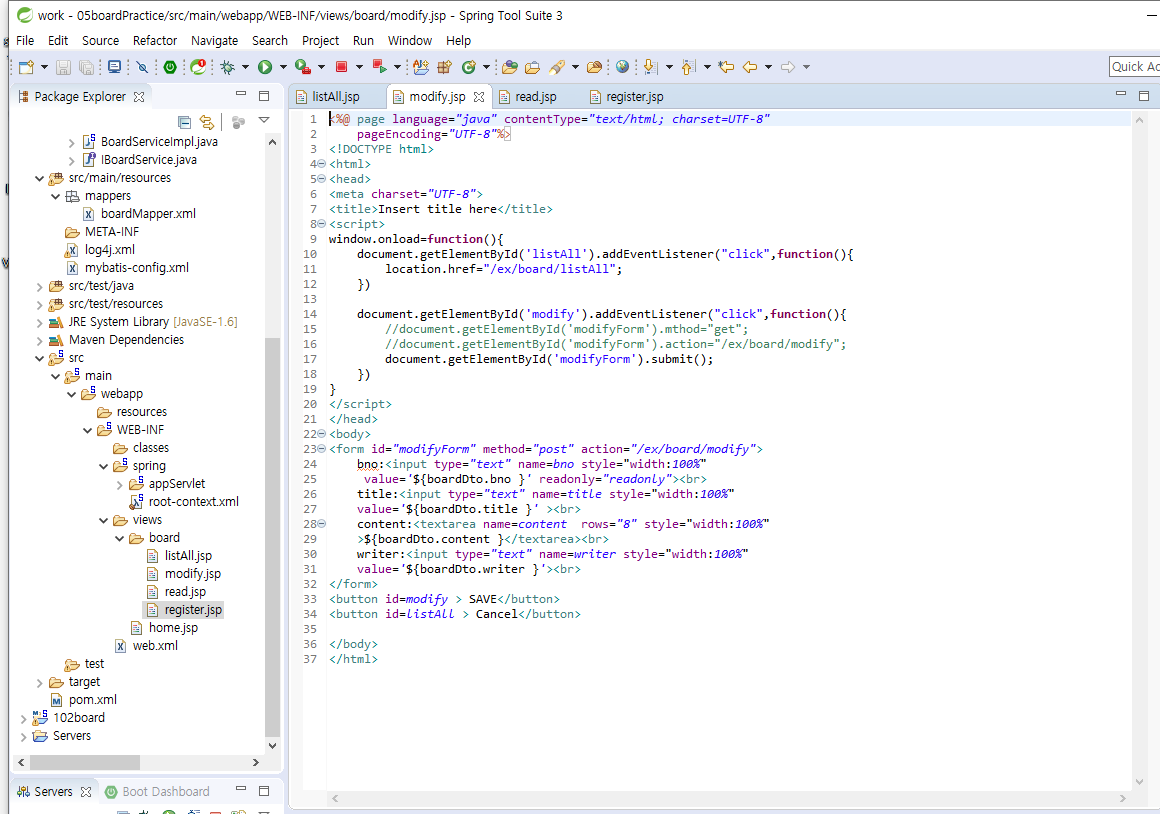

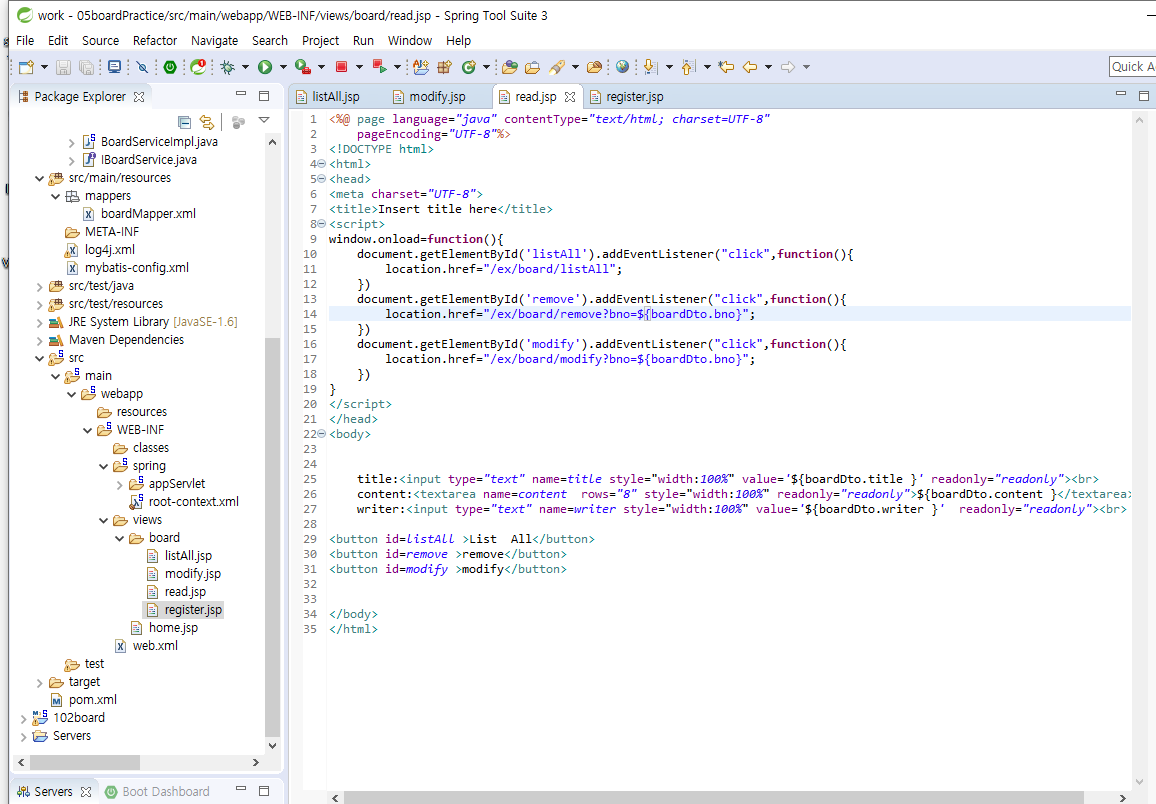

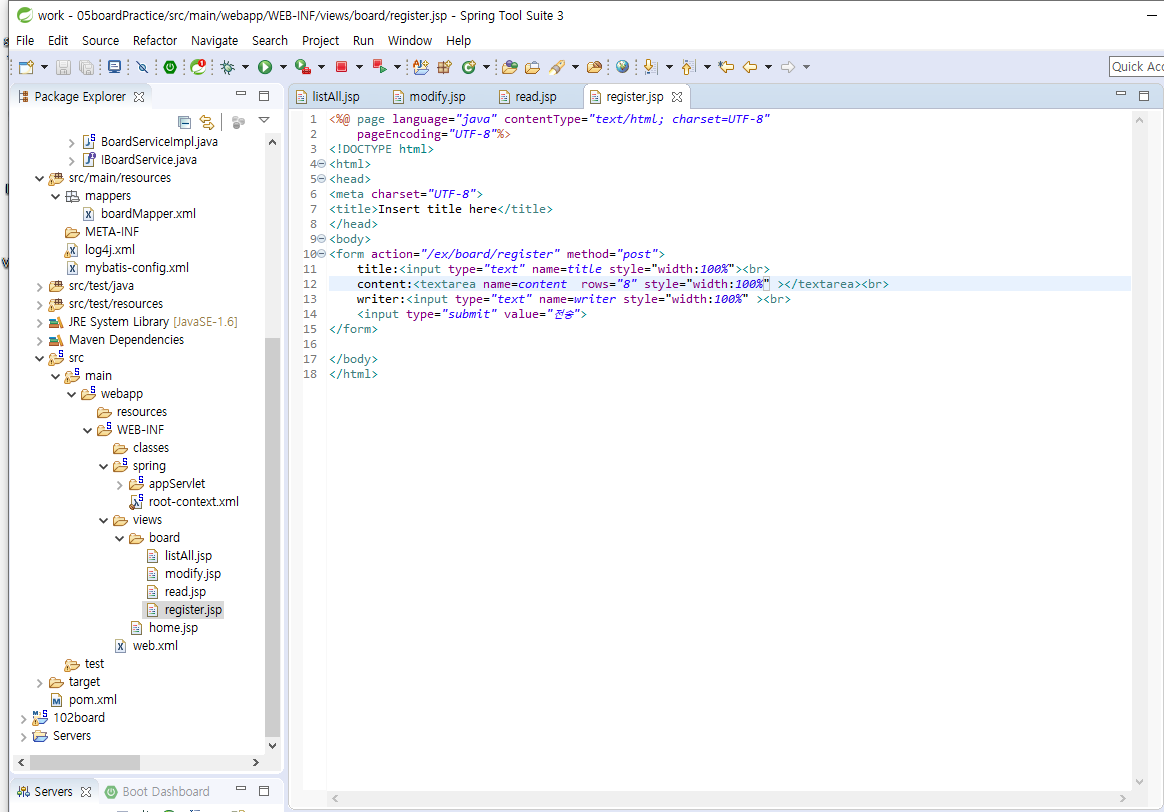

8.Views에 jsp를 통해 화면을 출력한다

DB 데이터 삽입 SQL

create table tbl_board (
bno number,
title varchar2(200) not null,
content varchar2(4000) not null,
writer varchar2(50) not null,
regdate date default sysdate,
viewcnt number default 0
);


alter table tbl_board add constraint pk_board
primary key(bno);


create sequence seq_board;


insert into tbl_board (bno, title,content,writer)
values (seq_board.nextval,'제목','내용','user00');
